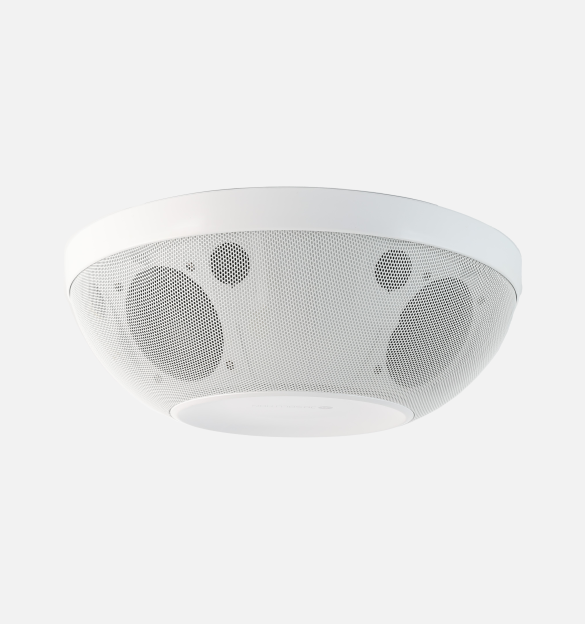

Omni-directional sound design
Through precise acoustic tuning and mechanical design 360 degrees in all directions without any deviation in sound quality and sound pressure Direct sound transmission
Linkage and expansion with existing broadcasting systems
Not only individual classroom broadcasts, but also existing Can be connected to campus central broadcasting
High output, high quality sound reproduction
4 woofer speakers and 8 tweeter speakers Realization of high-output, high-quality sound through application

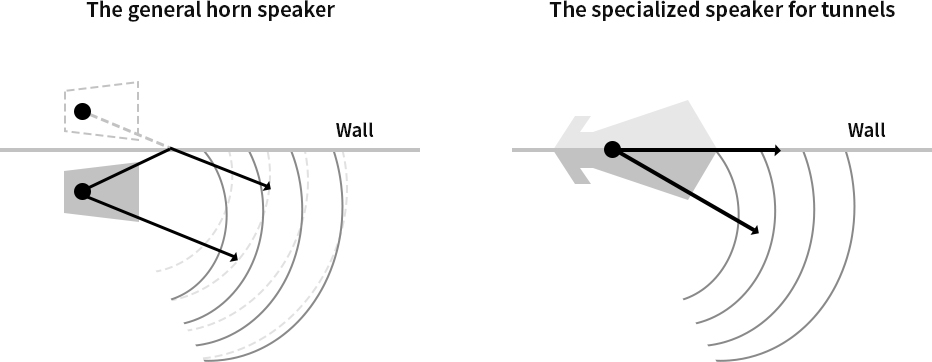

General speakers create an echo, overlapping sounds
Directional speakers equalize the sound directions to minimize any overlapping sounds
Minimizes echoes when compared to general horns
Compression drivers with the ability to reply at a consistent frequency in an auditory perceptive region
Aurim
Speaker | |
---|---|
model name | AU360-S01 |
Rated output | 100Watt |
sound pressure | 107dB |
Impedance (LOW) | 6Ω |
Impedance (HIGH) | 500Ω , 1KΩ |
Frequency characteristics | 47.5Hz ~ 20KHz |
size | 400*130 (mm) |
weight | 7kg |
AMP | |
model name | AU360-A01 |
Voltage used | AC220V / 60Hz |
Rated output | 200W (100W*2CH) |
Power Consumption | 280W |
frequency response | 20Hz ~ 20KHz |
SNR | 80dB |
size | 290*109.7*248.5mm |
weight | 4.5kg |
MIC | |
model name | AU360-M01 |
frequency band | 925~937.5MHz |
operation channel | 2.4GHz/infrared light IR |
Transmission frequency | 925~937.5MHz |
SNR | 66.5dB |
Distance used | >15m |
size | 163*26*26mm |
weight | 70g |
