Dixxen

S series

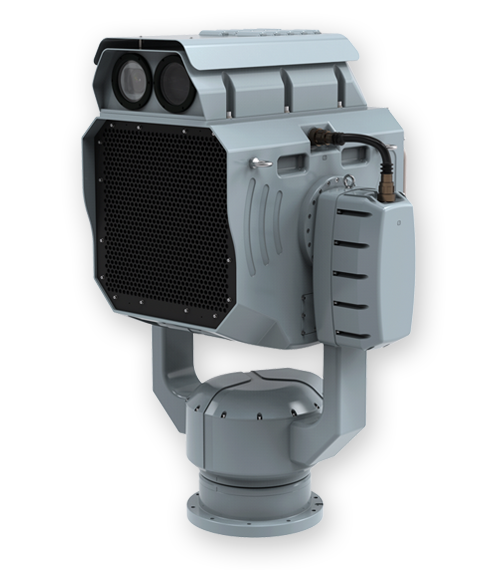

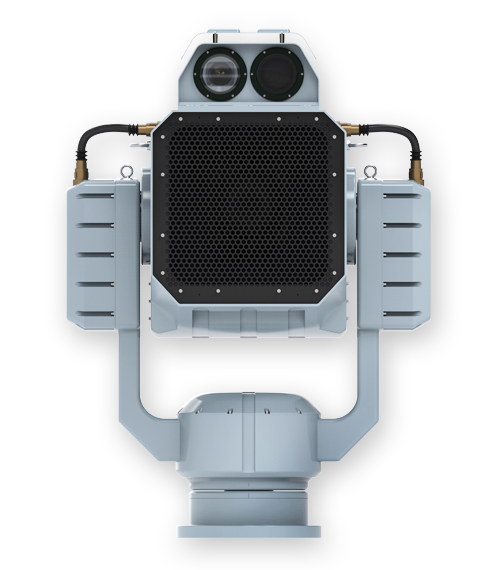

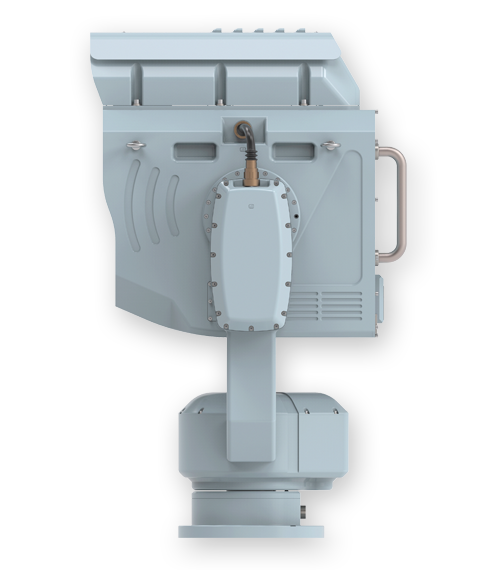

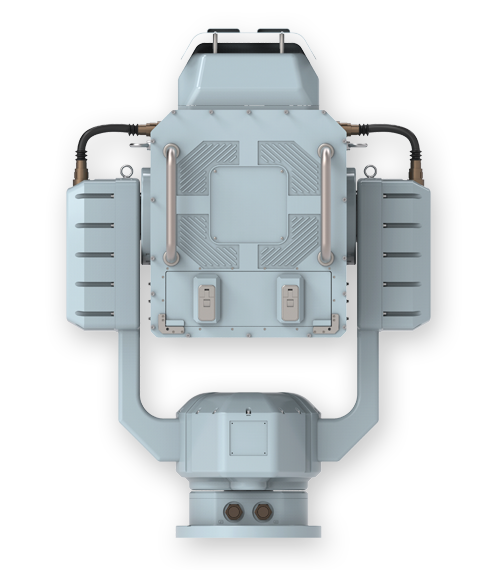

S4 R

Special features

Transmits a clear warning broadcast to a maximum 3km long-distance target with a maximum 154dB sound pressure, located within 1m front (Peak value)

Can be connected to other system software (Rada and AIS, etc.)

All Automatic Tracking & Surveillance & Mo

Technology features

  • 01. Equalizes sound directions based on directivity

    General speakers create an echo, overlapping sounds

    Directional speakers equalize the sound directions to minimize any overlapping sounds

  • 02. Minimizes echoes by taking into account the mirroring effect of the sounds

    Minimizes echoes when compared to general horns

  • 03. Replies occur at a consistent frequency

    Compression drivers with the ability to reply at a consistent frequency in an auditory perceptive region

  • 04. Reaches the STI of 0.46 or above on average in tunnels

    ※ STI (Speech Transmission Index)

Product Composition

High-powered acoustic hailing speaker

Pan/Tilt

CCTV + Thermal imaging camera (day time/night time monitoring)

Amplifier

Specification

High-power acoustic hailing speaker

Maximum sound pressure (Peak value) 154 dB @1m front (Peak)
Pointing angle ±15°
Maximum transmission distance ~3,000m
Guaranteed distance for the voice transmission ~1,000m
Frequency range 120Hz ~ 5kHz

Pan/Tilt

Tilt Range : ±90° / Speed: 6° / Sec
Pan Range : ±175° / Speed: 30° / Sec

Thermal image camera - Nighttime

Sensing Element Uncooled Microbolometer FPA
Resolution 640(H) x 480(V)
Pixel size 17㎛
Wavelength 8~12㎛ (LWIR)
Image frequency 30 fps
Angle of view 15mm(HFOV 42.2°) ~ 100mm(6.2°)
Zoom Optical 6.6x / Digital 4x

CCTV camera – Daytime

Image sensing device 1/2.8“ 2.4 Mega Pixel CMOS
Pixel The total number of pixels : 1981(H) x 1288(V) / Valid pixels: 1944(H) x 1212(V)
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720
Zoom Optical Zoom 32x

Certification

Salt Spray MIL-STD-810F
Environment MIL-STD-810G
Electric waves MIL-STD-461F
Vibration / resonance exploration MIL-STD-167-1A
Vibration/water resistance IP66

Total weight/size

Weight 170kg
Size 874 x 1219 x 757 (W x H x D / mm)

Details

Reference

Tunnel safety broadcasts

Security in industrial facilities

Protection of marine plants

Prevention of the collisions of aircraft with birds

Disaster evacuation broadcasts

Kuwait Oil Tanker Company

Brunei Navy

Republic of Korea Navy
